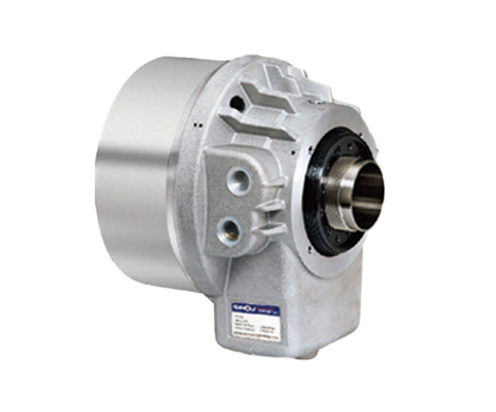

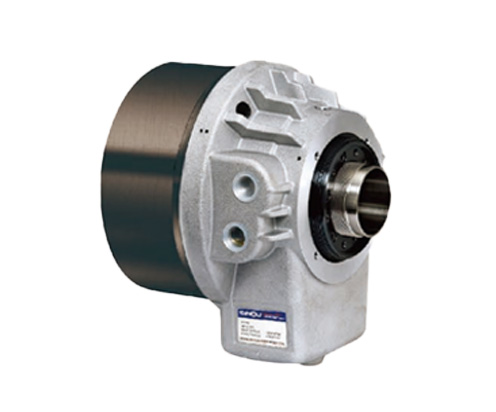

大孔徑薄型中空油壓回轉缸

特征:

1.專(zhuan) 利產(chan) 品、高壽命、低噪音、高轉速

2.無論是高壓還是低壓，都具有良好的密封性。

3.低摩擦，啟動阻力小，運動平穩，無“爬行”

4.雙向壓力密封

5.保壓時間長，泄油量小

6.安裝時可前後鎖

谘詢報價

參數表

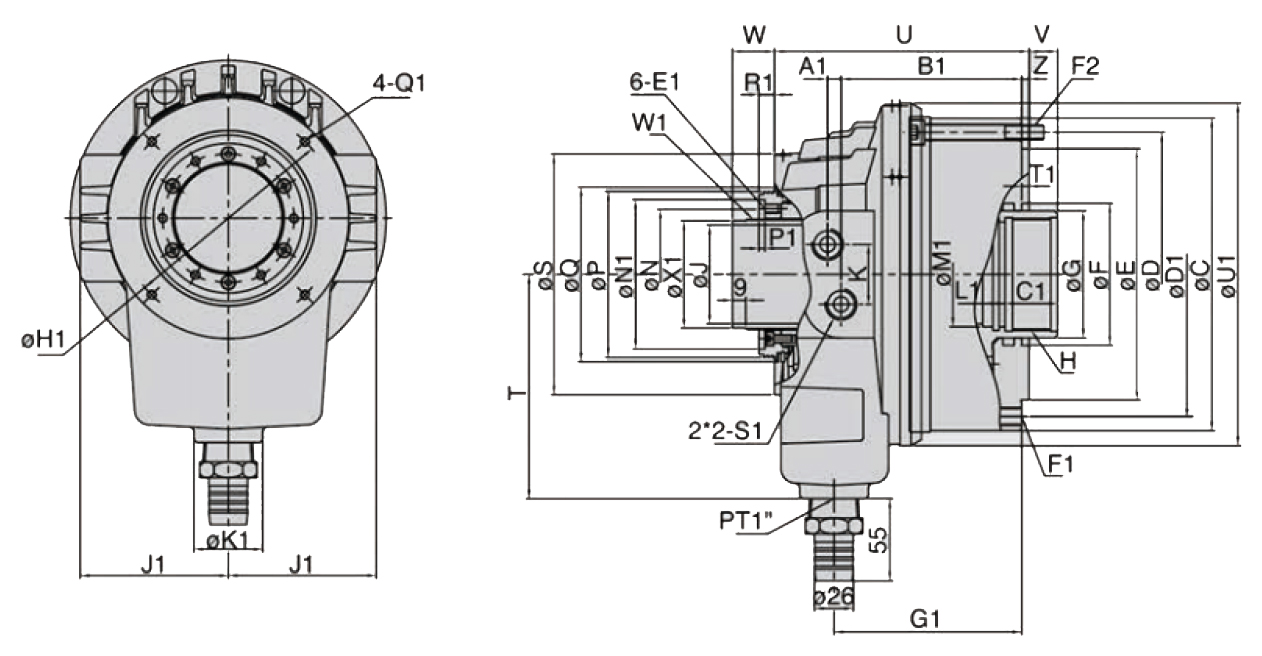

型號尺寸
A1B1CC1DD1E
(h7)		E1FF1F2GG1H
ST652B9109.218030165165140M6×1P856-M10×1.5P6-M8×1.25P70113.9M60×2P
ST866B9120.720935190190168M6×1P9512-M12×1.75P6-M10×1.5P85125.4M75×2P
ST1081B10.7133.722235205205168M6×1P11012-M12×1.75P6-M10×1.5P100139.2M90×2P
ST1210B12152.226635240240200M6×1P13512-M12×1.75P6-M12×1.75P125158.5M115×2P

型號尺寸
H1JJ1KK1L1M1NN1PP1QQ1R1SS1TT1
ST652B1205283404615557385964102M6×1P10.5137PT 1/21304
ST866B145669940461570881001114117M6×1P10.5161PT 1/21505
ST1081B16681107.5404615851031131264132M6×1P10.5176PT 1/21755
ST1210B2011061254046151101331451604166M6×1P10.5210PT 1/22005


型號尺寸
UU1V
max.		V
min.		W
max.		W1WX1Z活塞行程
(mm)		最高回轉速
min(r.p.m)		活塞直徑
(mm)
ST652B155.720117-348.2M58×1.5P28.255.85206500145
ST866B170.222919-350.2M74×1.5P28.271.85225600165
ST1081B189.224021.1-3.953.2M89×2P28.285.85254800180
ST1210B216.728419-1158.2M118×2P28.2114.88303500210


型號尺寸
慣性矩I
Kgf/cm²		流量
(I/min)		最高使用壓力
Kgf/cm²(Mpa)		活塞麵積
最大推工(拉)力

淨重
(Kg)
押側 cm² 拉側cm²推力側
Kgf(KN)		拉力側
Kgf(KN)
ST652B0.0353.940(3.9)1371264860(47.6)4464(43.7)12.3
ST866B0.07440(3.9)1701576048(59.3)5580(54.7)17.4
ST1081B0.094.340(3.9)1911756804(66.7)6264(61.4)21.9
ST1210B0.206.035(3.4)232.0223.56900(67.6)6650(65.2)35.8
