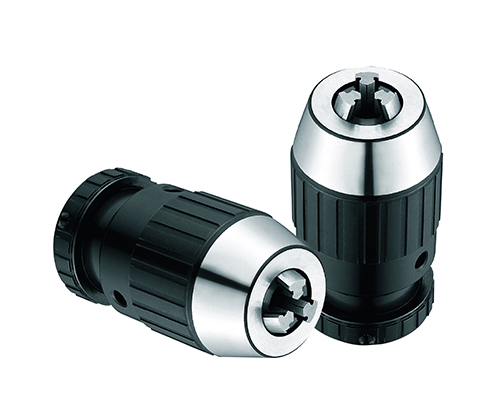

J01、02係列自緊式鑽夾頭 重型

特征:

適用範圍: CNC加工中心。

1.具有高精度，高夾緊，高可靠性和穩定性。

2.易損部件淬火處理。

3.具有自緊功能，輕輕夾緊鑽頭即可，在鑽孔中隨著扭距的增加而同步增加夾持力，並能產(chan) 生明顯的高強度夾持力，從(cong) 而防止鑽頭打滑。

谘詢報價

參數表

J01. 02係列 莫氏.賈格短錐連接

工廠編號型號夾持範圍錐孔號錐角d
mm		I
mm		D
mm		L(±1)
mm		L1(±0.5)
mm		Kg檢查棒
mm φ		精度力距
N.M
大棒小棒M級P級
717023J0104H-A0.3-4 1/64'' -5/32''JT02° 49' 24.7''6.35011.1122960.855-4x45-0.050.081.2
717024J0106H-A0.5-6B102° 51' 26.7''10.09414.5003471.5640.326x65-0.050.103
717025J0106H-A1/64'' -1/4''JT14° 24' 53.1''9.75416.6693471.5640.326x65-0.050.103
717026J0108H-A0.5-8B122° 51' 26.7''12.06518.50043.691.582.20.508x80-0.050.104
717027J0108H-A1/64'' -5/16''JT24° 40' 11.6''14.19922.22543.691.582.20.508x80-0.050.104
717028J0110H-A1-10B122° 51' 26.7''12.06518.50043.694.585.50.7010x956x650.050.106
717029J0110H-A1/32'' -3/8''JT24° 40' 11.6''14.19922.22543.694.585.50.7010x956x650.050.106
717030J0113H-A1-13B162° 51' 41.0''15.73324.00051103.592.50.9613x1056x650.050.1012
717031J0113H-A1/32'' -1/2''JT333° 38' 13.4''15.85025.40051103.592.50.9613x1056x650.050.1012
717032J0116H-A1-16B182° 51' 41.0''17.78032.00056.61181041.2416x1108x800.050.1014
717033J0116H-A1/32'' -5/8''JT62° 58' 24.8''17.17025.40056.61181041.2416x1108x800.050.1014
717034J0120H-A5-20B222° 52' 31.5''21.79340.500591301181.7020x12010x950.050.1016
717035J0120H-A3/16'' -3/4''JT33° 3' 3''20.59930.956591301181.7020x12010x950.050.1016
